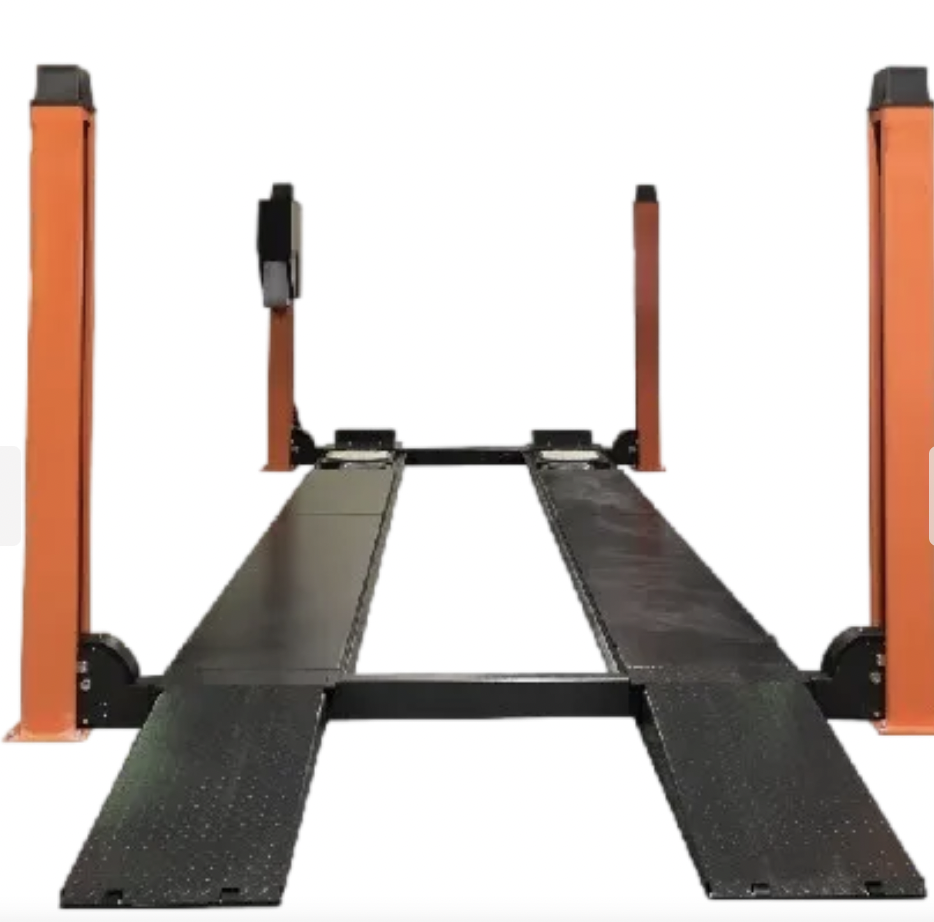

Understanding Four-Post Lift Dimensions and Capacity
Standard measurements for workshop compatibility
Standard four post lifts usually measure somewhere between 7 and 14 feet long, making them suitable for most garage setups. Getting the right size matters a lot if we want to prevent awkward spacing problems down the road while keeping things running smoothly day to day. Width wise, these lifts typically fall within an 8 to 12 foot range. That works fine for regular cars but mechanics need to think about tire clearance when planning installation spots. Workshop owners should always check what the manufacturer says about specs before buying anything. These specs contain all the exact numbers and adjustment options needed to match whatever particular needs exist in any given shop environment.
How lift length affects vehicle positioning
When it comes to four post lifts, their length really matters for getting vehicles positioned properly. Longer lifts just make sense when dealing with all sorts of car sizes from compact models to full sized trucks. For shops doing high volume work, this gets even more important because proper placement means smoother workflow throughout the day. We've seen plenty of cases where shops picked the wrong size lift and ended up struggling with access problems that slowed everything down. Getting the right dimensions isn't just about space though it actually makes a big difference in how efficiently mechanics can work on cars, which translates directly into higher productivity across automotive repair facilities.
Width considerations for tire clearance and stability
Choosing the right four post lift requires considering more than just vehicle dimensions. The width needs to provide safe working space for technicians while allowing easy access around the vehicle. Tire clearance plays a big role in keeping things stable during lifting operations. Most experts recommend at least two inches of space between each tire and the lift arms to prevent wobbling or shifting. Sedans, SUVs, and commercial trucks all have different space needs that can make or break a purchase decision. Taking time to understand these differences ensures the lift will actually work properly day after day without compromising safety standards or risking damage to both equipment and vehicles.
Height requirements for vertical storage
Getting the right clearance matters a lot when storing cars vertically on those four post lifts. Most workshops need around 7 to 9 feet of total height space for this setup to work properly. Checking exactly how tall the workshop area is helps make sure these lifts can actually be used safely for storing vehicles as well as doing maintenance work. Proper headroom isn't just about convenience either it's critical for staying safe while working above ground level. Mechanics who ignore these measurements often end up with serious problems later on, so taking time to measure things correctly pays off in the long run for anyone running a repair shop.
Assessing Your Workshop Space and Layout
Floor Space Calculations for Four-Post Systems
When figuring out how much floor space is needed for a four post system, it's important to consider not just the actual size of the lift itself but also the extra room vehicles need when being moved in and out. Most standard four post lifts take up approximately 10x20 feet of space on the shop floor, although some models might require more or less depending on their specific design features. Many shops find plotting software really helpful for seeing exactly where the lift will fit inside their current workspace setup. Using these tools helps plan things like where mechanics will walk, where tools get stored, and makes sure everything works smoothly together without feeling cramped or awkward once installed.
Ceiling Height Limitations in Automotive Paint Booths
When installing a lift inside an automotive paint booth, ceiling height becomes a major concern. Most paint booths come with relatively low ceilings, typically between 10 and 12 feet tall, making it tricky to fit in a standard four-post lift system. Technicians need to check how these lifts might interfere with existing ventilation systems and lighting arrangements since both factors directly affect how well the booth works day to day. From experience working on shop floors across the country, we've seen time and again that keeping ceiling heights within certain parameters actually improves air circulation throughout the space while reducing unwanted paint overspray issues during actual painting operations.
Workflow Optimization Around Permanent Lift Installations
Getting those four post lifts in the right spots makes all the difference when it comes to keeping things running smoothly in hectic workshop environments. Workshops need clear paths so cars can move around without getting stuck, plus space for mechanics to get where they need to go without bumping into each other. Shops that have figured this out report cutting down on how long it takes to get cars back on the road by about 20%. When shops think ahead about where to place equipment and plan their layout properly, everyone works better together. The whole shop runs like clockwork, which means fewer headaches for staff and happier customers waiting for their cars. Plus, when different stations communicate and coordinate effectively, nobody ends up wasting time looking for tools or waiting on parts.
Weight Capacity Considerations for Different Vehicles
Sedan vs. SUV requirements in home workshops
Setting up a home workshop means figuring out what kind of weight capacity we're dealing with for different cars, especially sedans versus those big SUVs. Most sedans will need something around 3,000 pounds, while SUVs can push the limits up to about 5,500 pounds or so. Before buying anything, take a good look at what vehicles actually roll into your garage regularly. That way, whatever lift gets installed can handle the real-world demands without stressing components beyond their limits. Mechanics generally recommend going with a lift rated for roughly 20% more than the heaviest car in the fleet. Extra capacity isn't just about being safe it really does extend how long the equipment lasts before needing replacement parts.
Commercial-grade capacities for heavy-duty trucks
Heavy vehicle mechanics working on things like big rigs absolutely need commercial grade lifts for their shop. Most of these industrial lifts handle weights between eight thousand and fourteen thousand pounds, specifically designed for tough truck work. Knowing what weight limits apply isn't just good practice it's actually required by most shop safety codes and local ordinances. According to the folks at NADA, getting the right lifting capacity matters a lot when it comes to how long the equipment will last and whether it keeps performing properly over time. Shops that follow these basic rules tend to avoid accidents and save money in the long run because they don't end up replacing worn out gear prematurely.
Safety margins and future-proofing your investment
Getting a lift that works now but can handle what comes next down the road makes good business sense in the long run. Most industry professionals suggest building in some extra capacity too, usually around 25% above what's needed for the heaviest loads. This kind of thinking saves money later on when bigger vehicles come through or operations expand. The numbers back this up pretty well actually. Shops that stick to proper safety margins report about 30% fewer incidents compared to those cutting corners. Makes sense really, because nobody wants to deal with equipment failures during busy periods or worse still, have someone get hurt because the machinery couldn't handle what was thrown at it.
Comparing Four-Post Lift Configurations
Adjustable vs. Fixed Runway Designs
Knowing when to choose adjustable versus fixed runway designs makes all the difference when it comes to handling different types of vehicles. Adjustable setups can actually change shape depending on what kind of car or truck needs servicing, which is why they work so well in places like tire shops where mechanics often need to move cars around differently. Mechanics who've switched to these flexible systems report cutting down their setup time by almost half in many cases. This saves everyone involved time and money while keeping the shop running smoothly throughout the day.
Drive-through vs. Stationary Platform Models
When it comes to picking between drive through models versus stationary platforms, most shops base their choice on what works best for their particular setup. Drive through units make getting vehicles in and out much simpler, so they tend to be the go to option in busy garages where time is money. The main advantage here is straightforward access without all the hassle of moving cars around. Stationary platforms have their own benefits though. These setups stay put and offer better stability during repairs that need extra care and attention. Mechanics working on delicate components or alignments often appreciate the solid foundation these platforms provide. Looking at industry trends shows around seven out of ten workshops opt for drive through configurations because they just plain work better in most real world situations. But there are exceptions depending on the type of repairs being done regularly.
Integration with Spray Paint Booth Workflows
Putting together four post lifts and spray paint booths really cuts down on wasted time in the shop, but getting this right takes some serious thought about how things actually move through the space. When mechanics can roll vehicles directly from the lift into the paint area without having to maneuver around obstacles, everyone gets their work done faster. Shop owners we've talked to report seeing anywhere from 20 to 25% better throughput after making these kinds of changes. The real magic happens when technicians don't have to stop what they're doing just to wait for another part of the process to finish. Spray painting becomes just one step in a continuous workflow instead of an isolated task that disrupts everything else going on in the garage.
FAQ
What are the standard dimensions of a four-post lift?
Four-post lifts typically range from 7 to 14 feet in length and 8 to 12 feet in width. These dimensions are crucial for ensuring compatibility with your workshop space.
How does the lift's length affect vehicle positioning?
The length of a four-post lift influences how well it can accommodate different vehicle sizes, affecting workflow and operational efficiency in workshops.
Why is tire clearance important when selecting a four-post lift?
Tire clearance is vital for vehicle stability and operator safety, requiring at least 2 inches of clearance on either side of a vehicle's tires.
What should I consider regarding the height requirements of four-post lifts?
When assessing height requirements, it's essential to ensure your workshop space can accommodate lifts with overall heights ranging from 7 to 9 feet for both storage and maintenance tasks.
How do I calculate floor space for a four-post lift?
To calculate floor space, you need to consider the lift's dimensions along with the additional clearance required for vehicle access, typically around 10 feet by 20 feet.
What are the weight capacity requirements for home workshops?
Sedans generally require lift capacities of around 3,000 lbs, whereas SUVs need up to 5,500 lbs, with an additional 20% safety margin recommended.
What are the electrical and pneumatic needs for paint booth compatibility?
Ensuring compatible electrical and pneumatic systems is crucial for integrating a four-post lift with an auto paint booth, requiring specific voltage levels and connections.
How can vertical space be optimized in compact workshops?
Vertical space can be maximized by stacking vehicles using four-post lifts, effectively doubling storage capacity without increasing the workshop's physical footprint.
